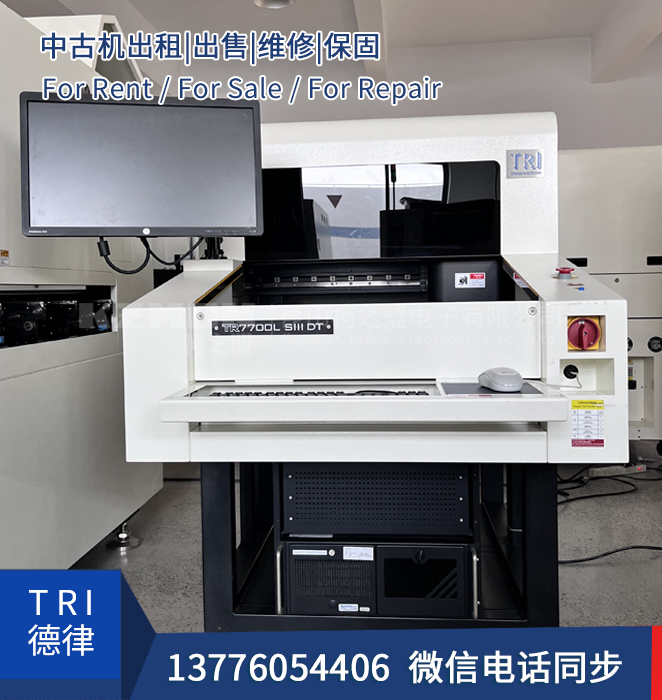

新型号德律离线AOI TR7700L SIII DT出货，此款设备可以和TR7710和TR7700SII PLUS 共用程式。

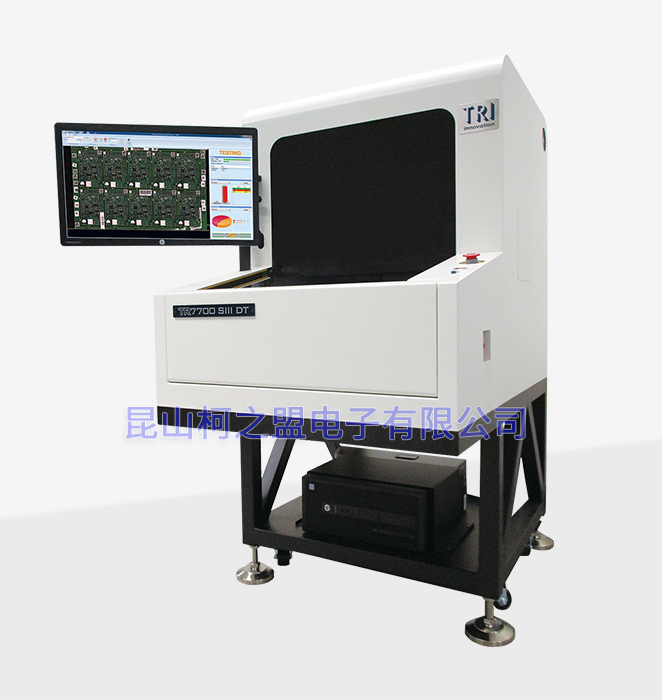

TR7700 SIII DT是一台高性能的离线型AOI解决方案，拥有最高精度和易用性等优点。使用TRI独有的多相位光源和新一代的检测软件，TR7700 SIII DT具备快速和简易编程等优良的缺陷检测功能，非常适合变化度高生产线。
仓库此款离线AOI还有四台，成色新，性能优！
有需要可以联系13776054406 贾先生，电话微信同步。
产品规格：
Optical System
Imaging Method
Dynamic Imaging
Top Camera
4 Mpix
Angle Camera
N/A
Imaging Resolution
10 µm, 15 µm (factory setting)
Lighting
Multi-phase RGB+W LED
3D Technology
N/A
Max. 3D Range
N/A
Inspection Performance
Imaging Speed
4 Mpix@ 10 µm: 60 cm²/sec
4 Mpix@ 12.5 µm: 120 cm²/sec

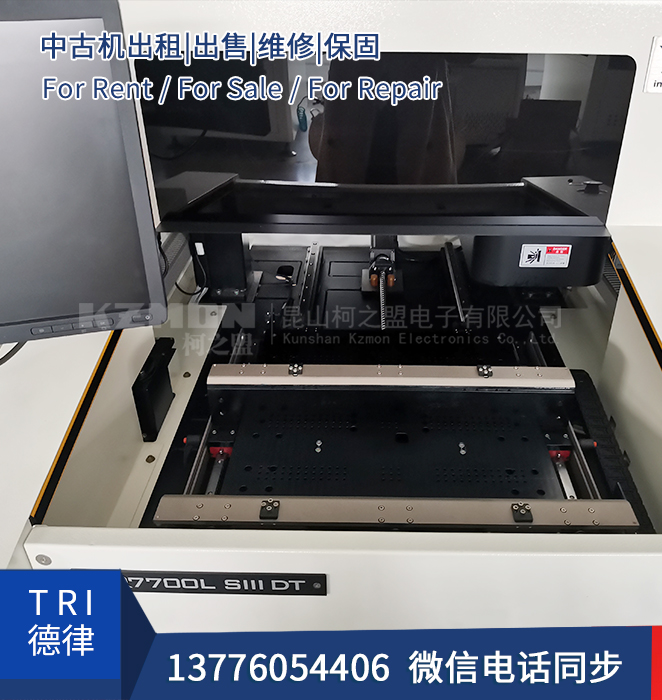

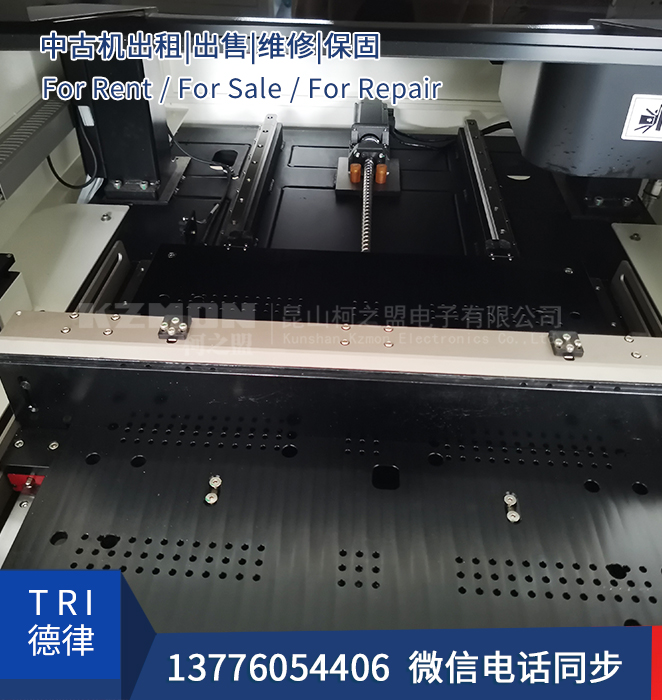

Motion Table & Control
X-Axis Control
Ballscrew + AC-servo controller
Y-Axis Control
Ballscrew + AC-servo controller
Z-Axis Control
N/A
X-Y Axis Resolution
1 µm
Board Handling
Max PCB Size
TR7700 SIII DT: 330 x 250 mm
TR7700L SIII DT: 510 x 460 mm
PCB Thickness
3 mm
Max PCB Weight
3 kg
Top Clearance
25 mm [48 mm optional]
Bottom Clearance
TR7700 SIII DT: 100 mm
TR7700L SIII DT: 50 mm
Edge Clearance
3 mm
Conveyor
Manual
Inspection Functions
Component
Missing
Tombstoning
Billboarding
Polarity
Rotation
Shift
Wrong Marking (OCV)
Defective
Upside Down
Extra Component
Foreign Material
Solder
Excess Solder
Insufficient Solder
Bridging
Through-hole Pins
Lifted Lead
Golden Finger
Scratch/Contamination
Dimensions
WxDxH
TR7700 SIII DT: 860 x 1100 x 1350 mm
TR7700L SIII DT: 980 x 1345 x 1490 mm
Weight
TR7700 SIII DT: 340 kg
TR7700L SIII DT: 385 kg
