本公司销售的德律设备均为二手设备，成色好，性能稳定。服务工程人员均在原厂有5年以上工作经验，出货前，我们会整体检测，demo1-2个工作日再发货。
出租设备，服务保养，升级保固，均为我司工程人员处理；
出售设备整机保固3个月，部分重要部件保固1年，若出保，我司配件备货充足，可提供紧急维修。
买机/租机热线：13776054406（手机/微信号）贾先生

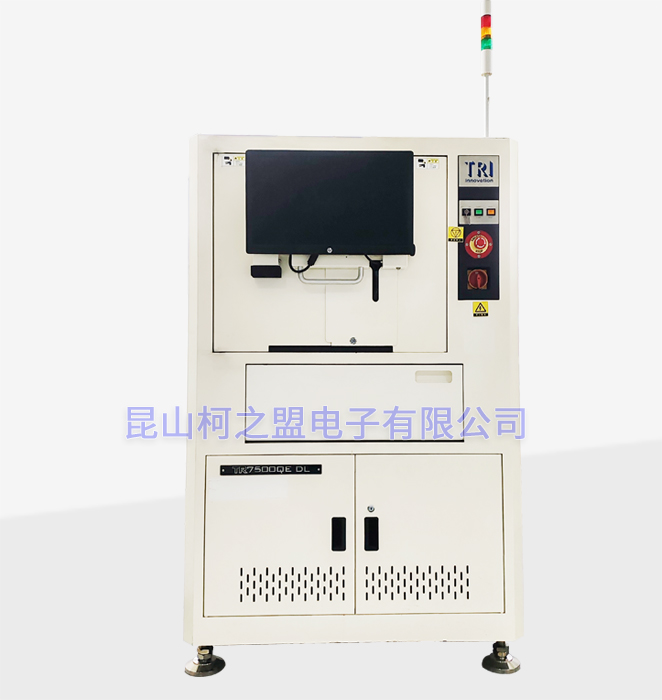

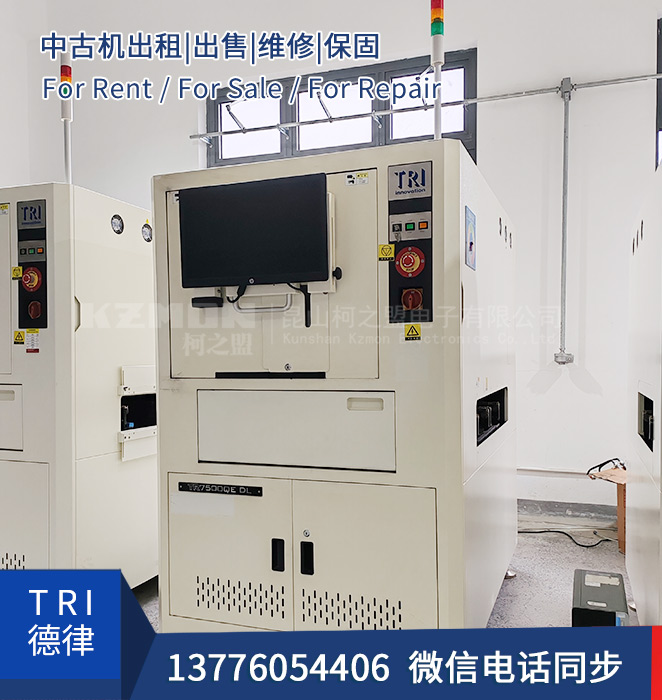

特性：
• 多角度2D+3D覆盖率
• 四向数位条纹光投影
• 四个低角度相机
• 3D高度检测范围可高达40 mm
• 高速CoaXPress取像
• 可选配3D雷射模组
规格：

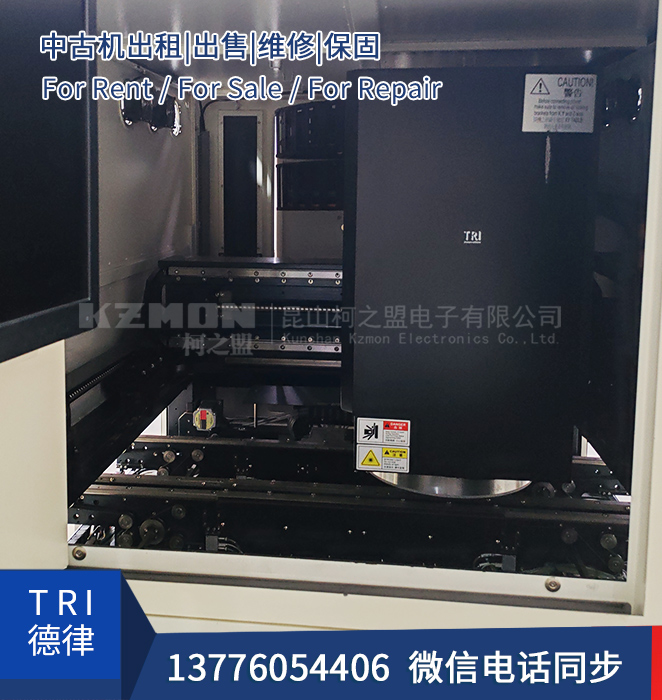

Optical System
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 12 Mpix |
| Angle Camera | 6.5 Mpix |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase true color LED, Coaxial lighting |
| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range | 0-40 mm |
Inspection Performance
| Imaging Speed |
12 Mpix@ 10 µm: 13.5 cm²/sec 12 Mpix@ 10 µm: 23 cm²/sec with optional CoaXPress 12 Mpix@ 15 µm: 30 cm²/sec 12 Mpix@ 15 µm: 40 cm²/sec with optional CoaXPress Note: The inspection time will vary depending on the configuration |

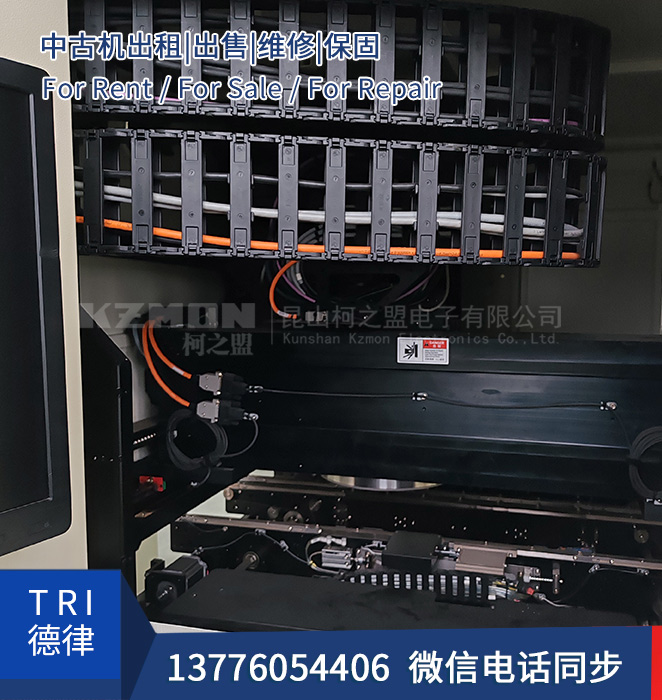

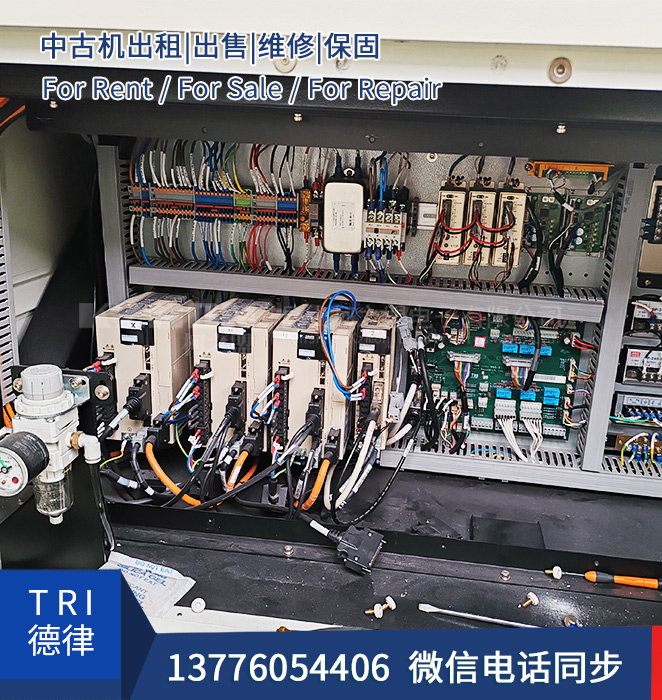

Motion Table & Control
| X-Axis Control | Ballscrew + AC-servo controller (Linear motor optional) |
| Y-Axis Control | Dual driven ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller |
| X-Y Axis Resolution | 1 µm |
Board Handling
| Max PCB Size |
TR7500QE: 510 x 460 mm TR7500L QE: 660 x 610 mm TR7500QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor |
Inline Height: 880 – 920 mm * SMEMA Compatible |
Inspection Functions
| Component |
Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component |
| Solder |
Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
Dimensions
| WxDxH |
TR7500QE: 1100 x 1730 x 1750 mm TR7500L QE: 1250 x 1880 x 1750 mm TR7500QE DL: 1100 x 1830 x 1750 mm Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7500QE: 920 kg TR7500L QE: 1170 kg TR7500QE DL: 950 kg |
