本公司销售的德律设备均为二手设备，成色好，性能稳定。服务工程人员均在原厂有5年以上工作经验，出货前，我们会整体检测，demo1-2个工作日再发货。
出租设备，服务保养，升级保固，均为我司工程人员处理；
出售设备整机保固3个月，部分重要部件保固1年，若出保，我司配件备货充足，可提供紧急维修。
买机/租机热线：13776054406（手机/微信号）贾先生

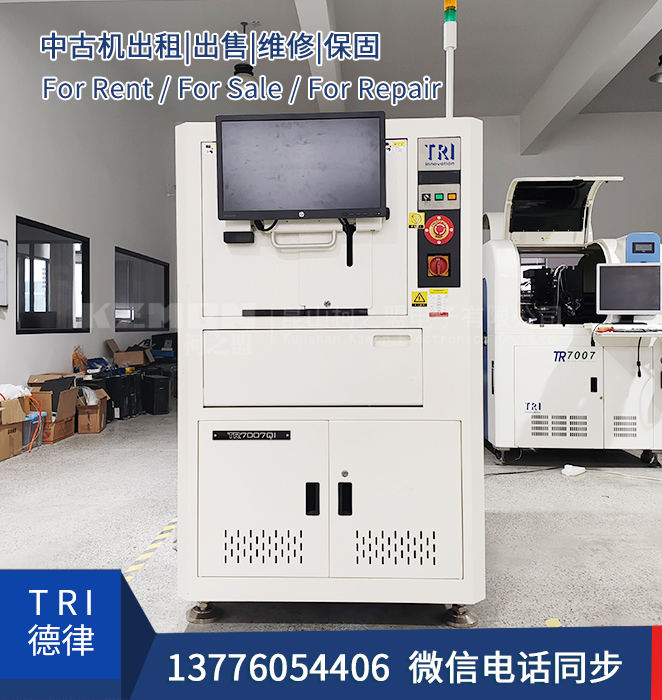

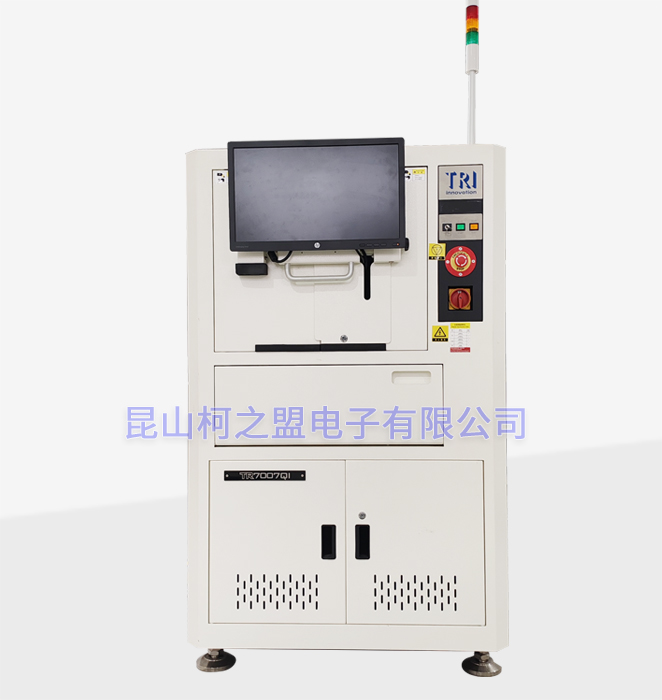

特性：
• 100%无阴影四/双数字边缘投影仪
• 优化的走走停停设计，实现较高精度
• SmartWarp补偿消除了局部PCB变形
• 100%焊膏缺陷覆盖率，包括低桥
规格：

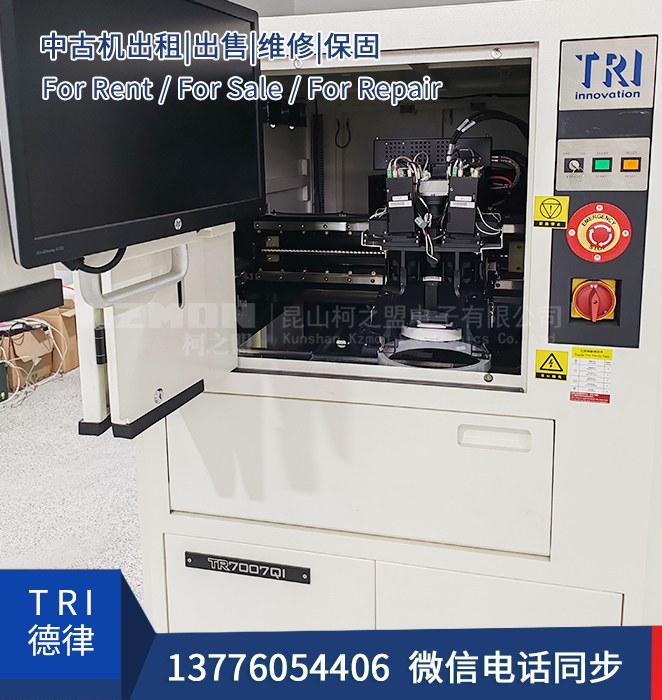

Optical System
Imaging Method
Stop-and-Go Imaging
Camera
4 Mpix or 12 Mpix (factory setting)
Imaging Resolution
6 μm, 10 μm , 15 µm (factory setting)
Lighting
RGB True Color LED
3D Technology
4-way Digital Fringe Pattern
Field of View
4 Mpix@ 10 µm: 20.3 x 20.3 mm
4 Mpix@ 15 µm: 30.5 x 30.5 mm
12 Mpix@ 6 µm: 24.4 x 18.4 mm*
12 Mpix@ 10 µm: 40.8 x 30.7 mm
12 Mpix@ 15 µm: 61.2 x 46.1 mm
* 6 μm is not available for TR7007QI DL
Inspection Performance
Imaging Speed
4 Mpix: 3 FOV/sec
12 Mpix: 2 FOV/sec
12 Mpix CoaXPress: 3 FOV/sec*
Note: Inspection speed depends on PCB and inspection conditions
* With optional CoaXPress upgrade
Height Resolution
@ 6 µm: 0.22 µm
@ 10/15 µm: 0.4 µm
Max. Solder Height
@ 6 µm: 210/420 µm
@ 10/15 µm: 420/840 µm

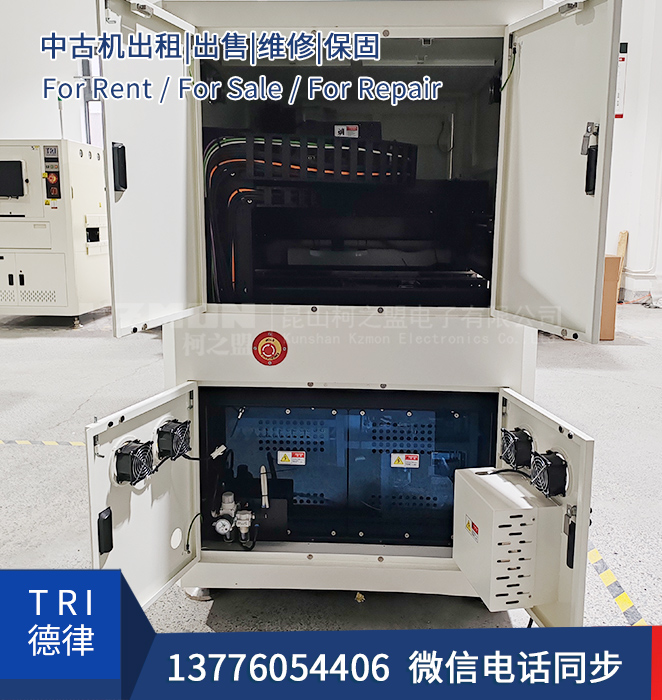

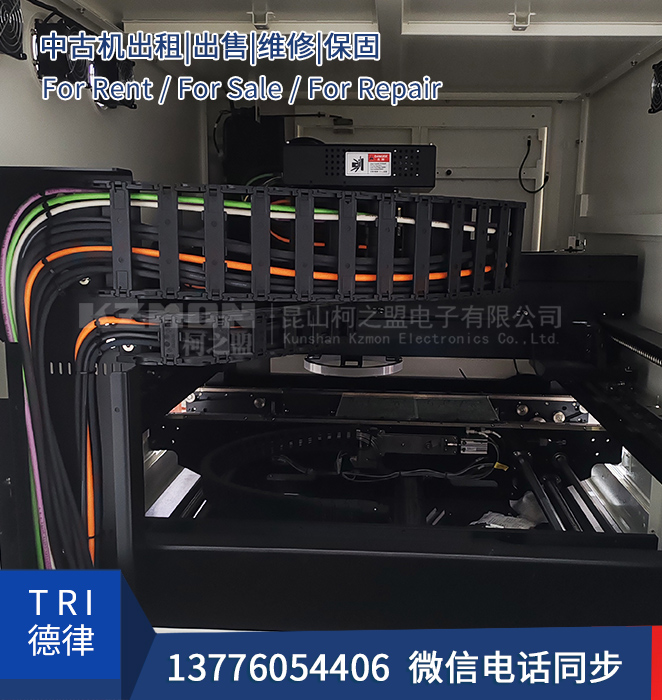

Motion Table & Control
X-Axis Control
Ballscrew + AC-servo controller
Y-Axis Control
Ballscrew + AC-servo controller
Z-Axis Control
Ballscrew + AC-servo controller
X-Y Axis Resolution
0.5 µm with linear scale
Z-Axis Resolution
0.5 µm with linear scale
Board Handling
Max PCB Size
TR70007QI: 510 x 460 mm*
TR7007QI DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
* 6 μm is only available for TR7007QI, the Max. PCB size is 330 x 310 mm
PCB Thickness
0.6-5 mm
Max PCB Weight
3 kg
Top Clearance
25 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm
Conveyor Height
880 – 920 mm
* SMEMA Compatible

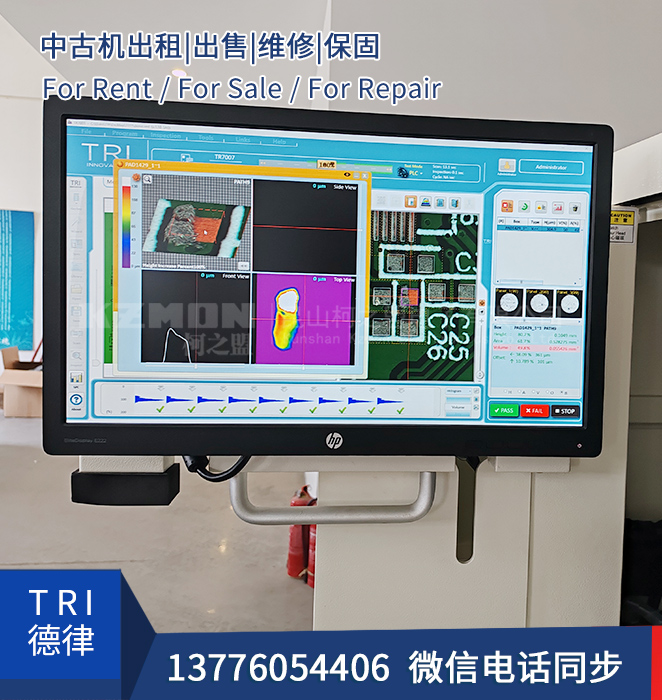

Inspection Functions
Defects
Insufficient Paste
Excessive Paste
Shape Deformity
Missing Paste & Bridging
Measurement
Height
Area
Volume
Offset
Dimensions
WxDxH
TR7007QI: 1000 x 1500 x 1650 mm
TR7007QI DL: 1000 x 1700 x 1650 mm
Note: not including signal tower, signal tower height 520 mm
Weight
TR7007QI: 675 kg
TR7007QI DL: 685 kg
